NOV 308T Triplex 350hp electric pump

NOV 308T Triplex 350hp electric pump

Contact us for price

Lufkin, TX

orCall +1-936-465-8989

Description

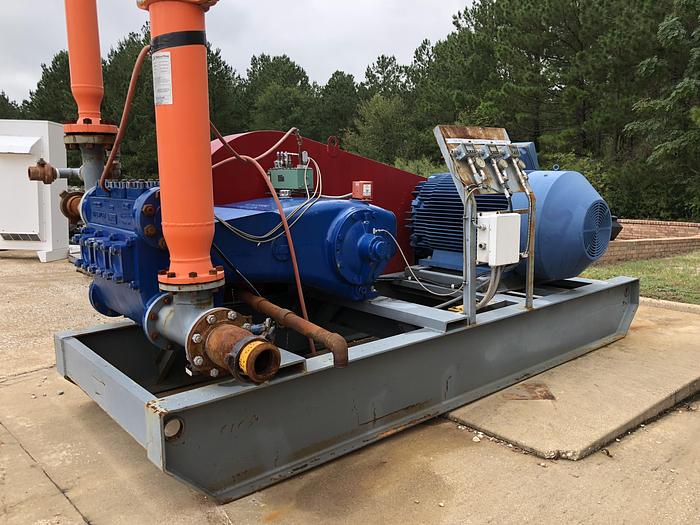

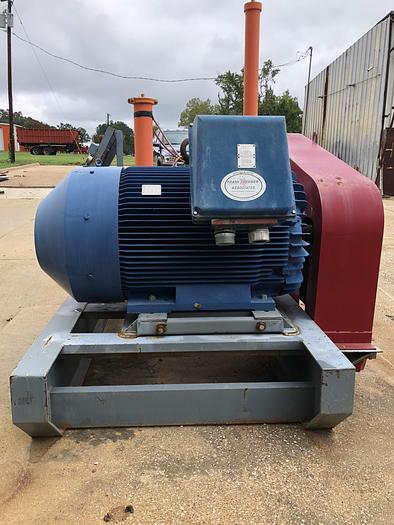

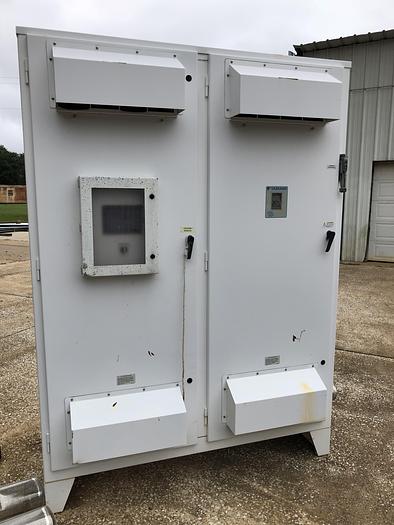

NATIONAL OILWELL VARCO (NOV) PRODUCTION PUMP. National 308T-7 triplex pump, 3.75" ceramic plungers, AR valves, external drip lubricated, pulsation dampeners. North American Electric 350hp 1200rpm 480v 3 ph 60hz 587U frame VFD rated electric motor. Belt drive 8V 8 groove 53”x13.2” 4.06:1 ratio. Very low hours since new, run at 65% load for two months, well maintained. Charge pump is ANSI, Durochem G 4x3-10/10 316SS wetted parts BB seal chamber, cartridge mechanical seal, 15hp 1800rpm VFD rated motor. Yaskawa A1000 IQ drive 350hp VFD A1C6B414PE4 NEMA 3R 480v 414amp 50c ambient. Safety shutdowns Low suction, high discharge, oil level, oil pressure, low oil lubricator, vibration. PLC/HMI and installed in VFD door. Yaskawa 15hp VFD installed in 350hp VFD cabinet for charge pump. Plug and play complete pump package Most inventory is for sale or rent.

Specifications

ManufacturerNOV
Model308T Triplex 350hp electric pump
ConditionUsed
