HPS, Horizontal Centrifugal Pumping System, Trailer mounted, 600hp Schlumberger h-pump

Description

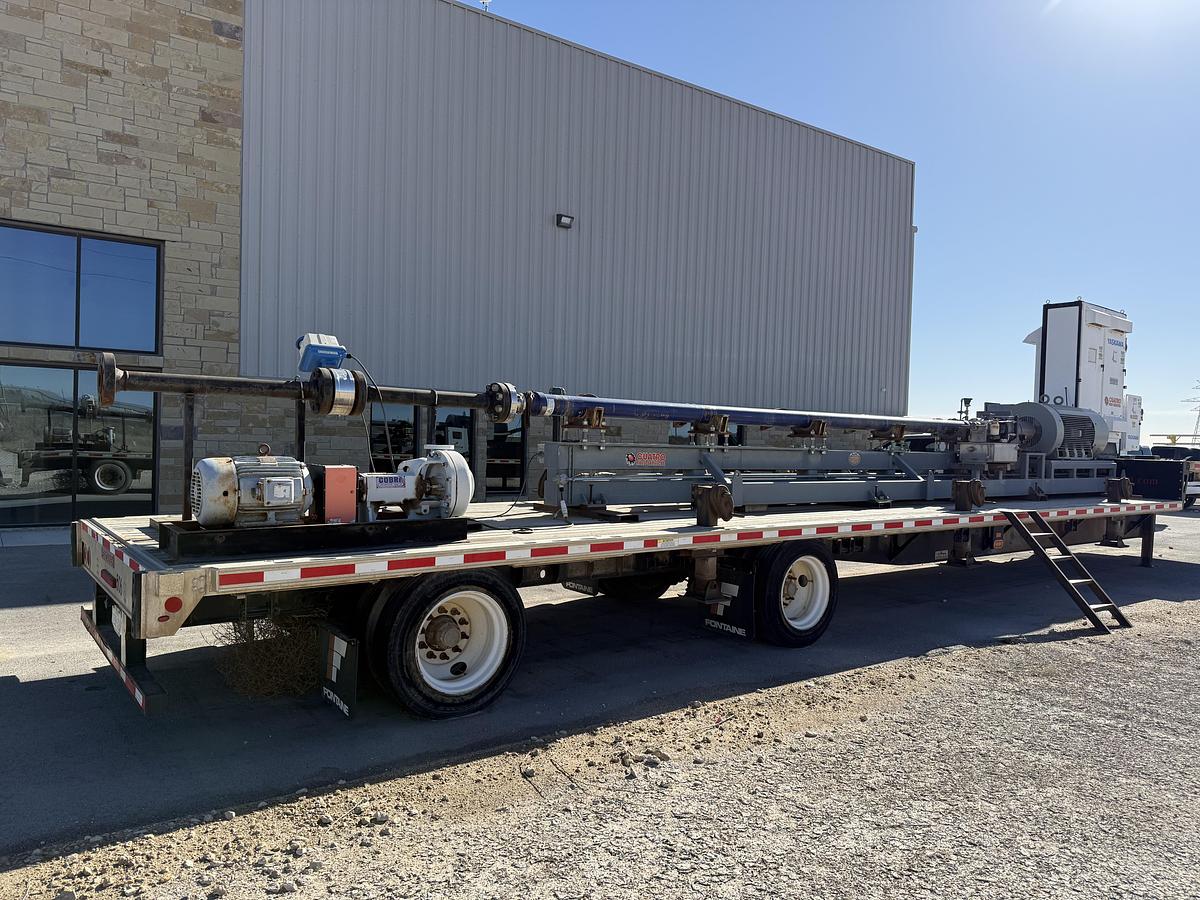

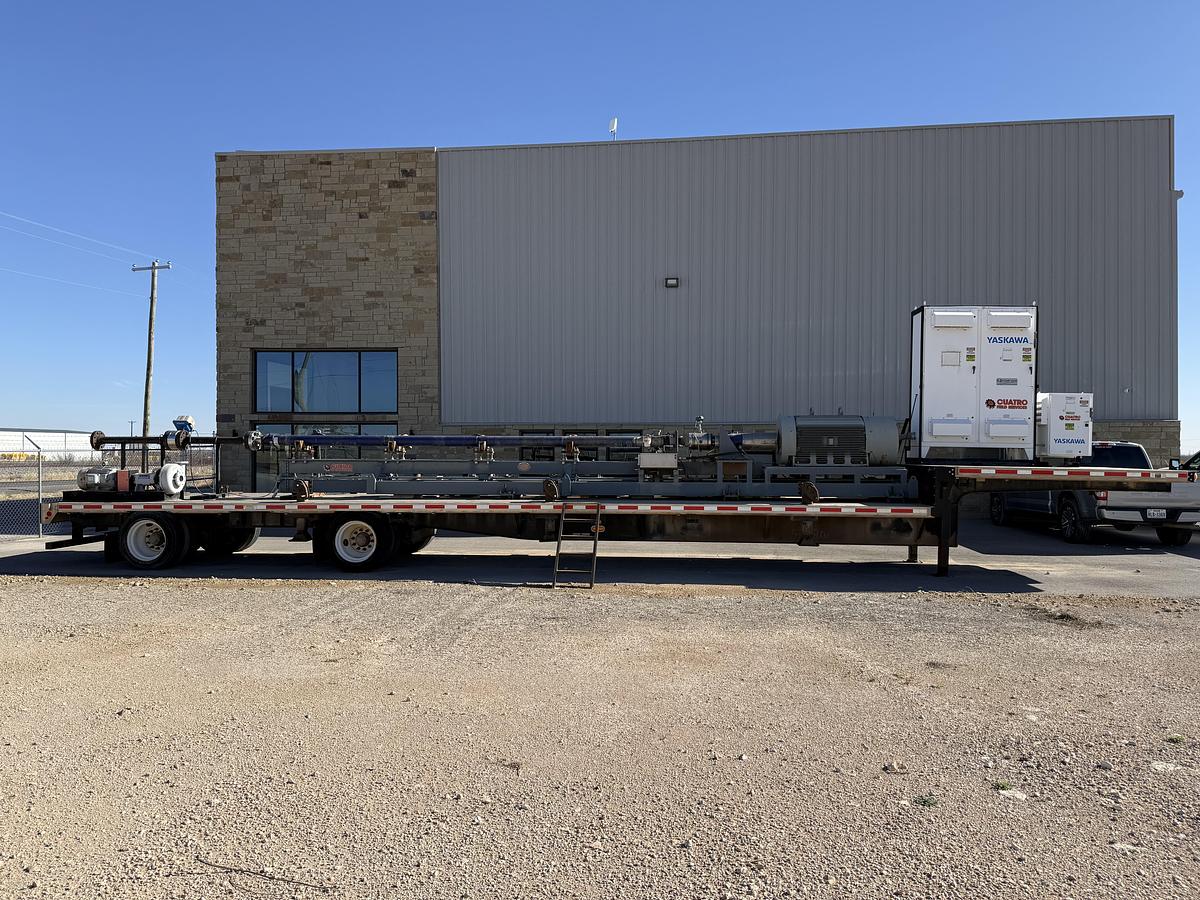

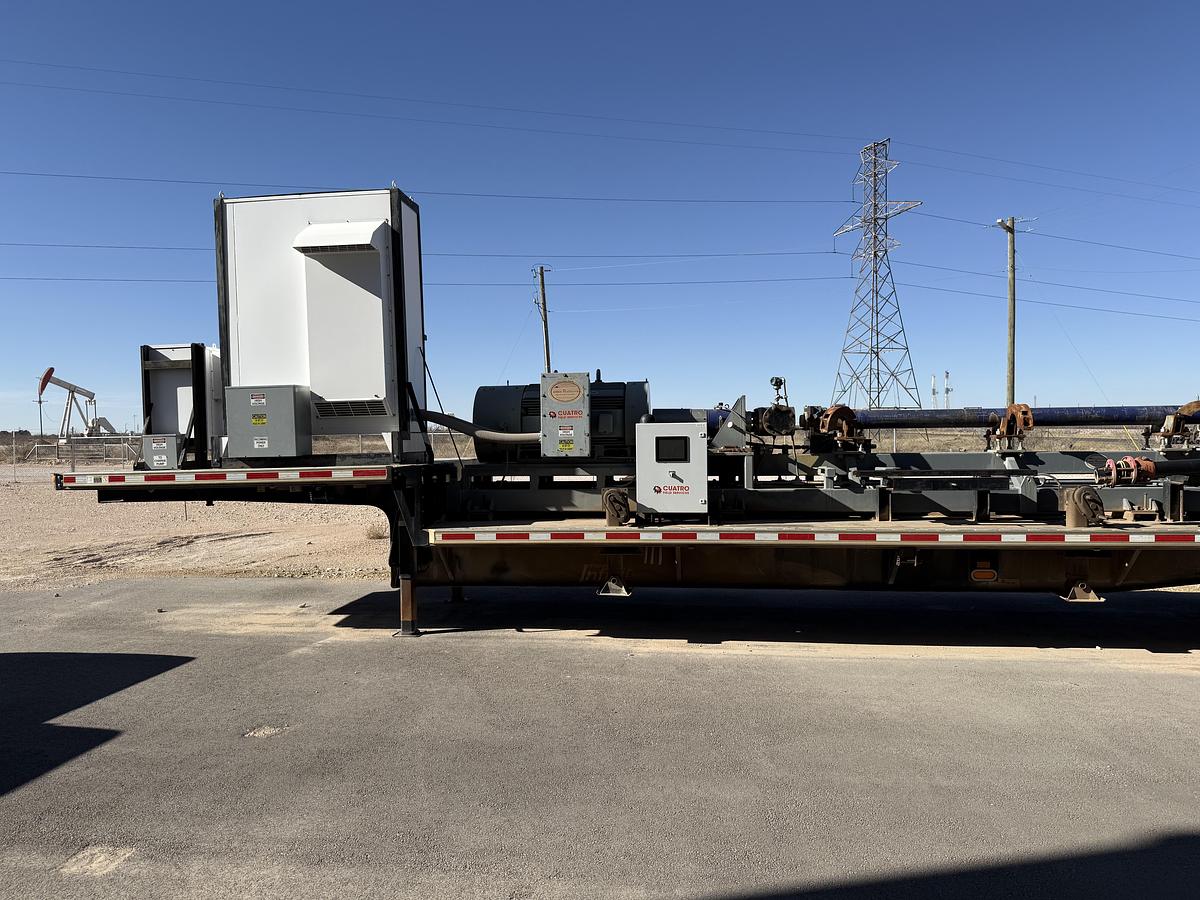

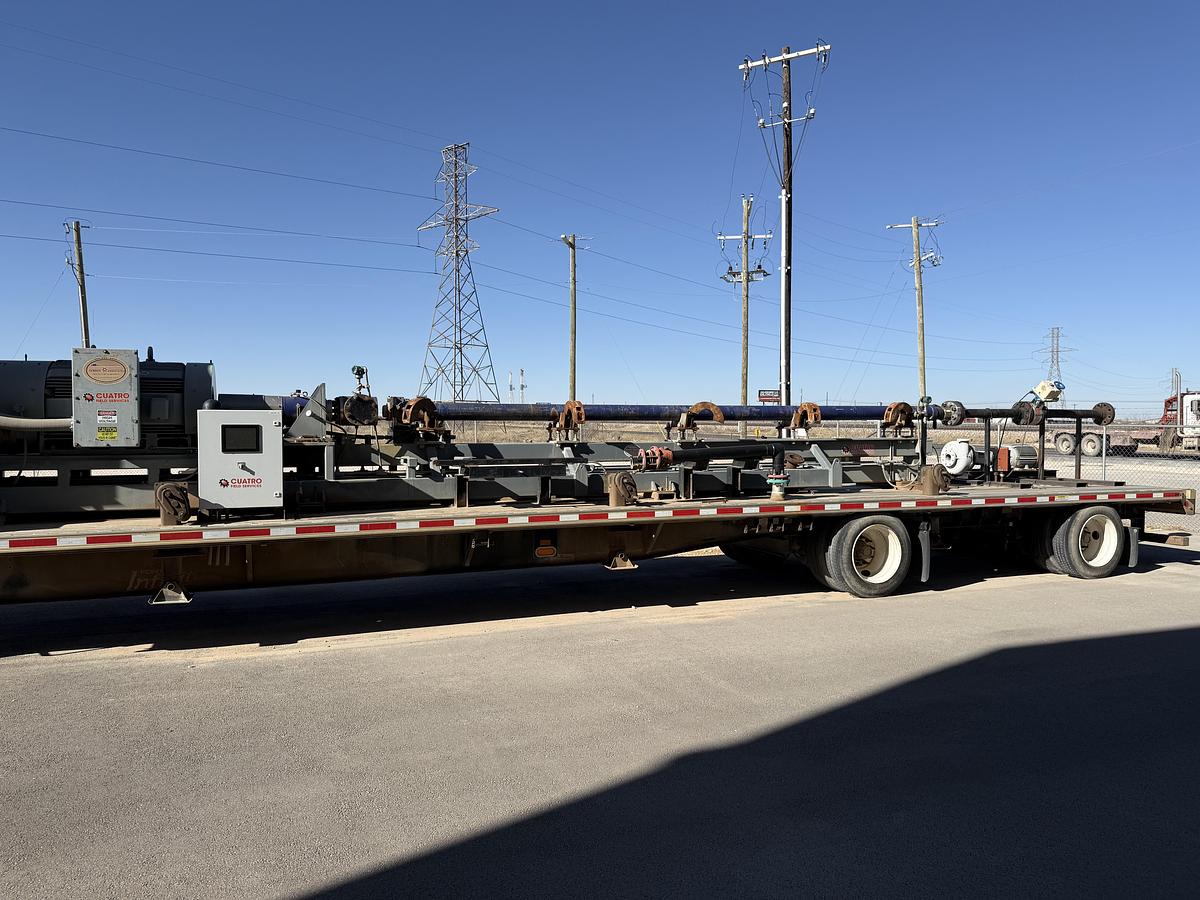

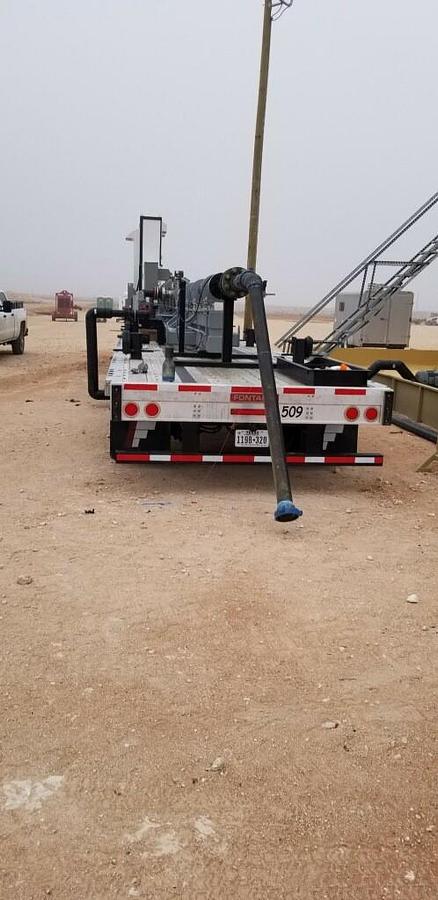

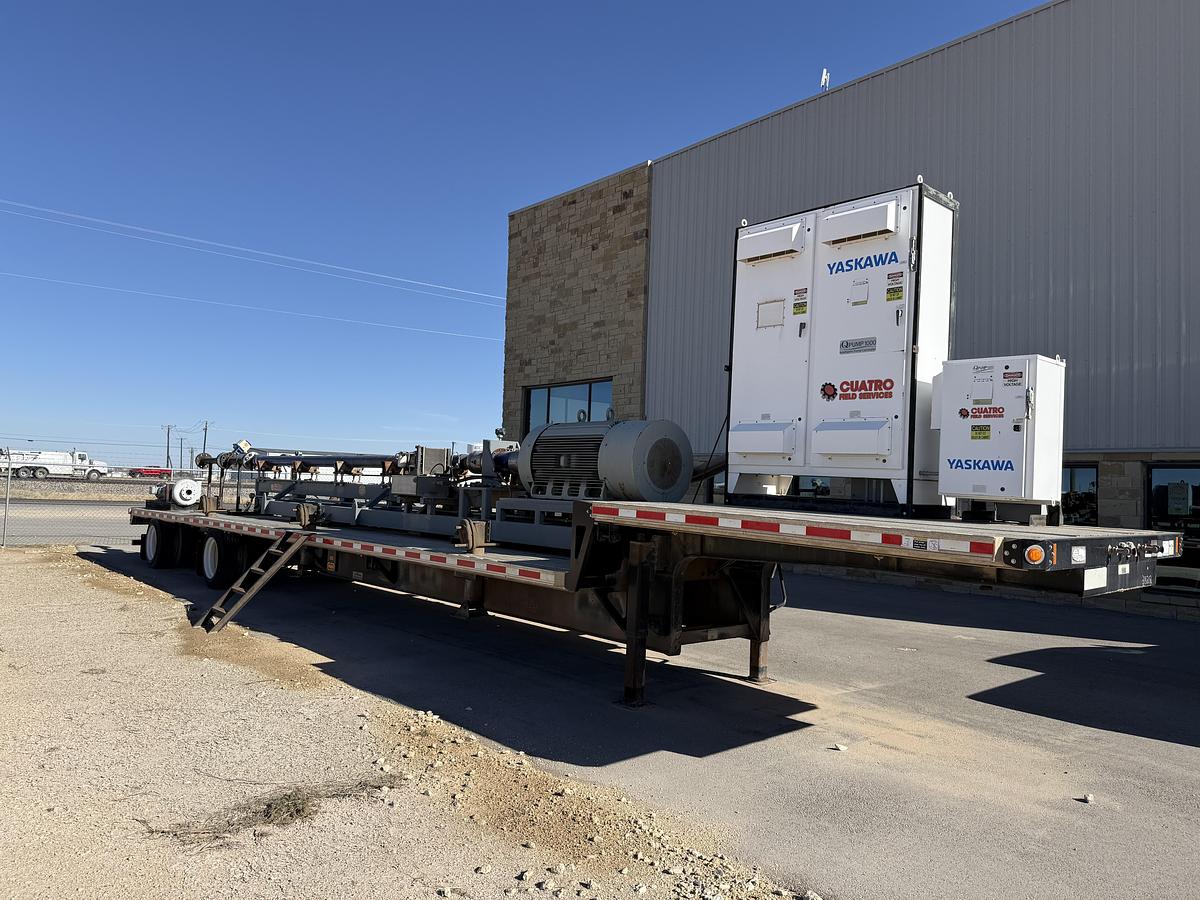

Horizontal Centrifugal Pumping System that is trailer mounted for quick rig up. Pump is a Schlumberger J350N 44 stage pump capable of a wide range of pumping flowrates and pressure. Best efficiency is 12,000bpd at 1,800psi but is capable of 4,000bpd at 2,150psi and 18,000bpd at 1,200psi. The unit comes ready to ship on a 2018 Fontaine combo drop deck trailer complete with leveling outriggers, remove charge pump, flow meter, cyclonic valve, VFD's and all the automation to run the unit remotely. the unit is a complete package that can be ready to pump within hours. The unit has a freshly reman thrust chamber and electric motor just got new bearings and a refresh.

Specifications

Manufacturer	Cuatro Field Services
Model	Schlumberger J350N H-pump
Year	2018
Condition	Used
Serial Number	13N2532C9J1528212
Stock Number	00001
Trailer Specs	2018 Fontaine combo drop deck, 53'x 102", Aluminum Floor, Steel frame, spread axles, air ride, 11R22.5
H-Pump	Schlumberger 44stage, tandem pump, Inconel 625 shaft, 6.75" OD series pump barrel, single mechanical seal, 6" pump suction 150# RF, discharge 4" 316ss 1500# RF, bearing cooler package, 600hp 3600rpm Teco max-E1
VFD	600hp Vaskawa IQ pump drive, NEMA 3R, 480v, 675a, circuit breaker, 50c ambient, 4-20ma outputs.
charge pump	TSC 4x3-13/11 std. motor teco xp 30hp 1800rpm 286T frame xp1314 VFD rated.
Charge pump VFD	Yaskawa 30hp IQ pump 480v
Cyclonic Valve	4" cyclonic Valve 1500# flange, automated actuator
Flow Meter	6" 150# RF flanged, suction mounted flow meter
PLC	Redlion 10" display, pump permisives and shut downs, interface with ICS
